Unlock automatic one-week lead times and lower cost by starting from a Core Format design template.
The slide template is best for:
- The lowest cost per device
- Compatibility with standard lab microscopes

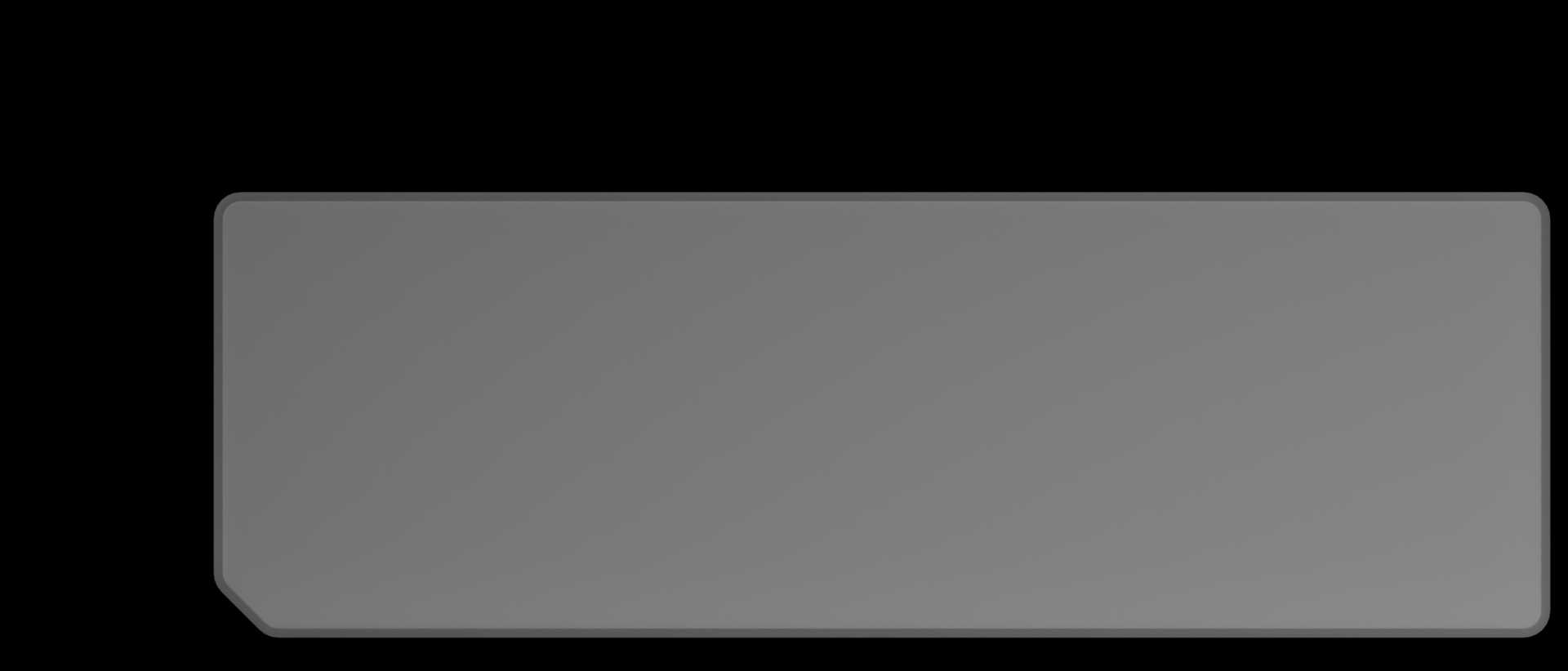

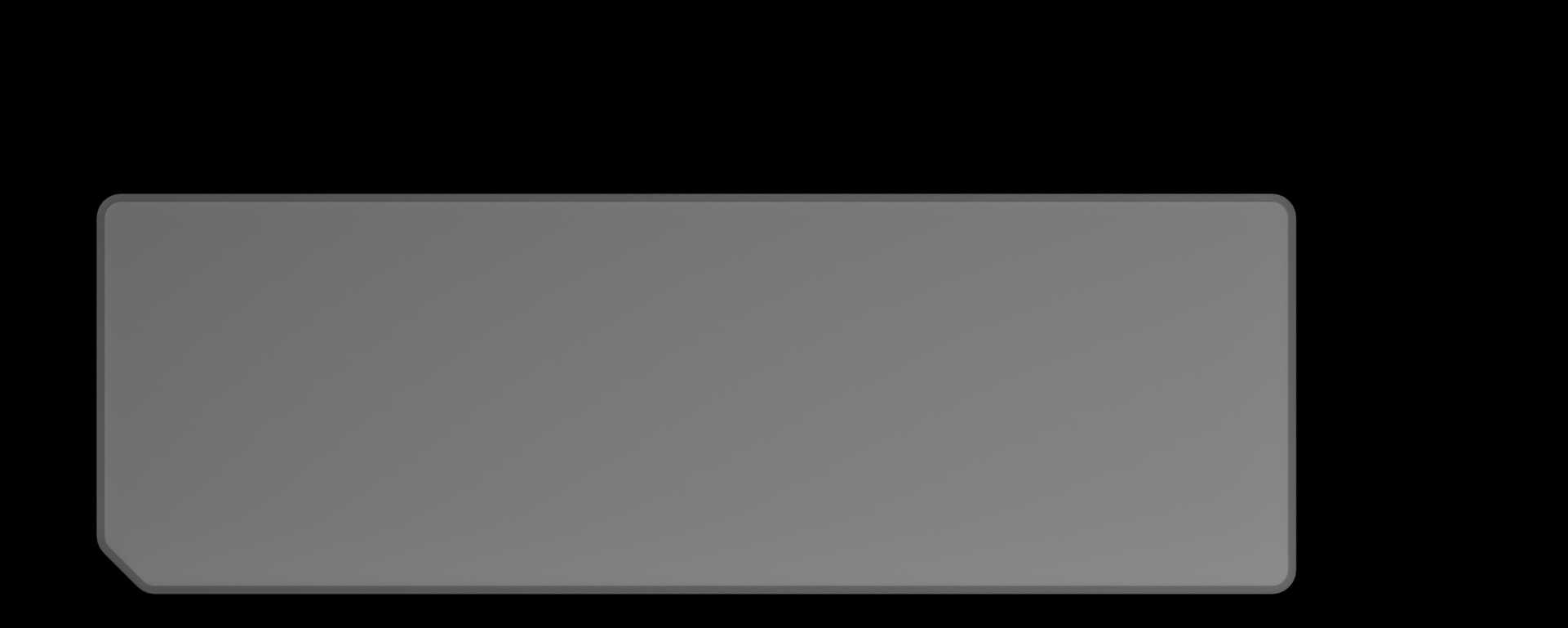

Top view

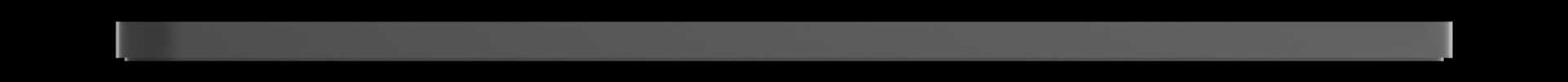

Side view
| Dimension | Value |
|---|---|
| Width | 75.00 mm |
| Depth | 25.00 mm |
| Thickness | 1.50 mm |
The double slide template is best for:
- A balance of complexity and device cost
- More room for interfaces and hardware

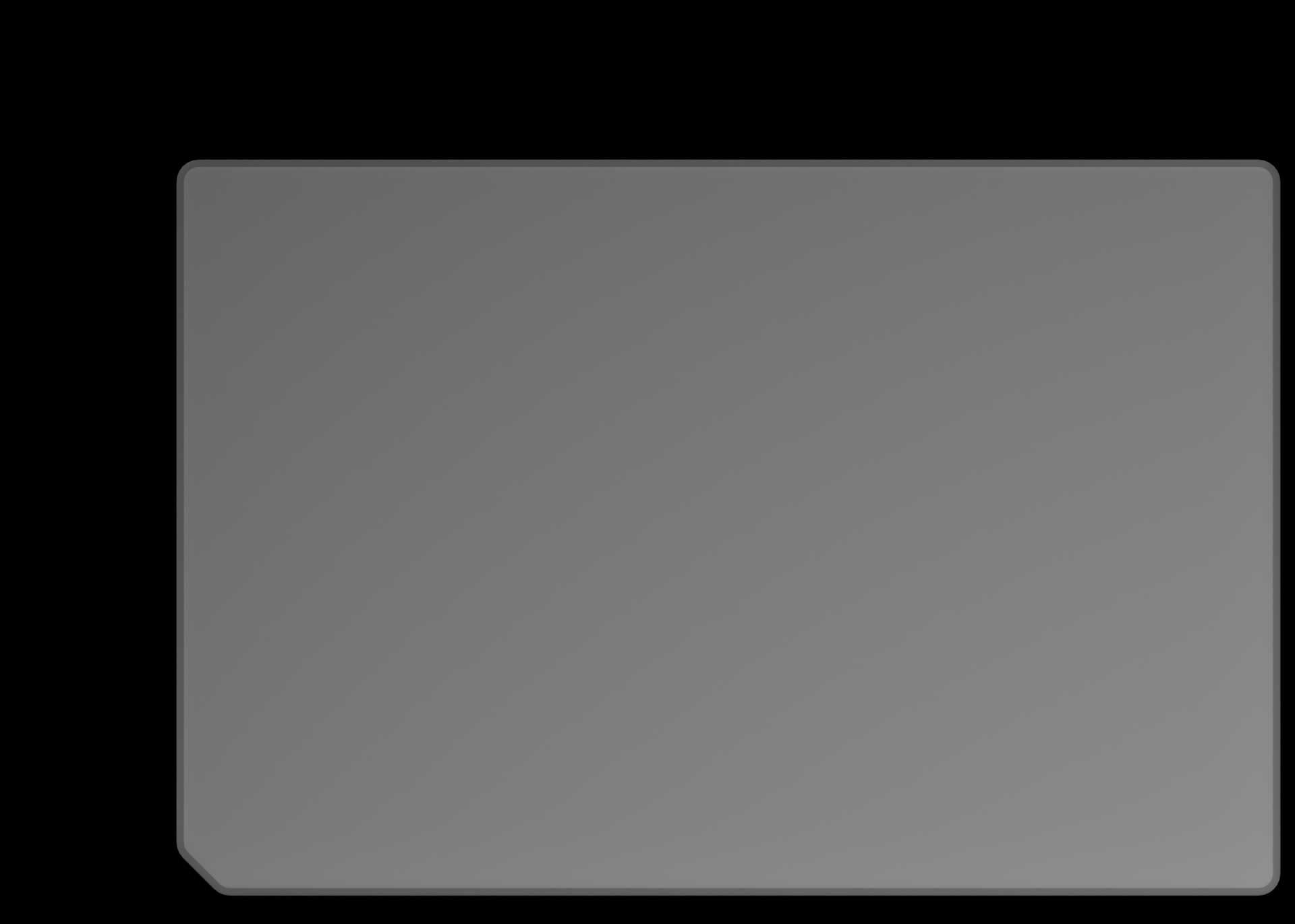

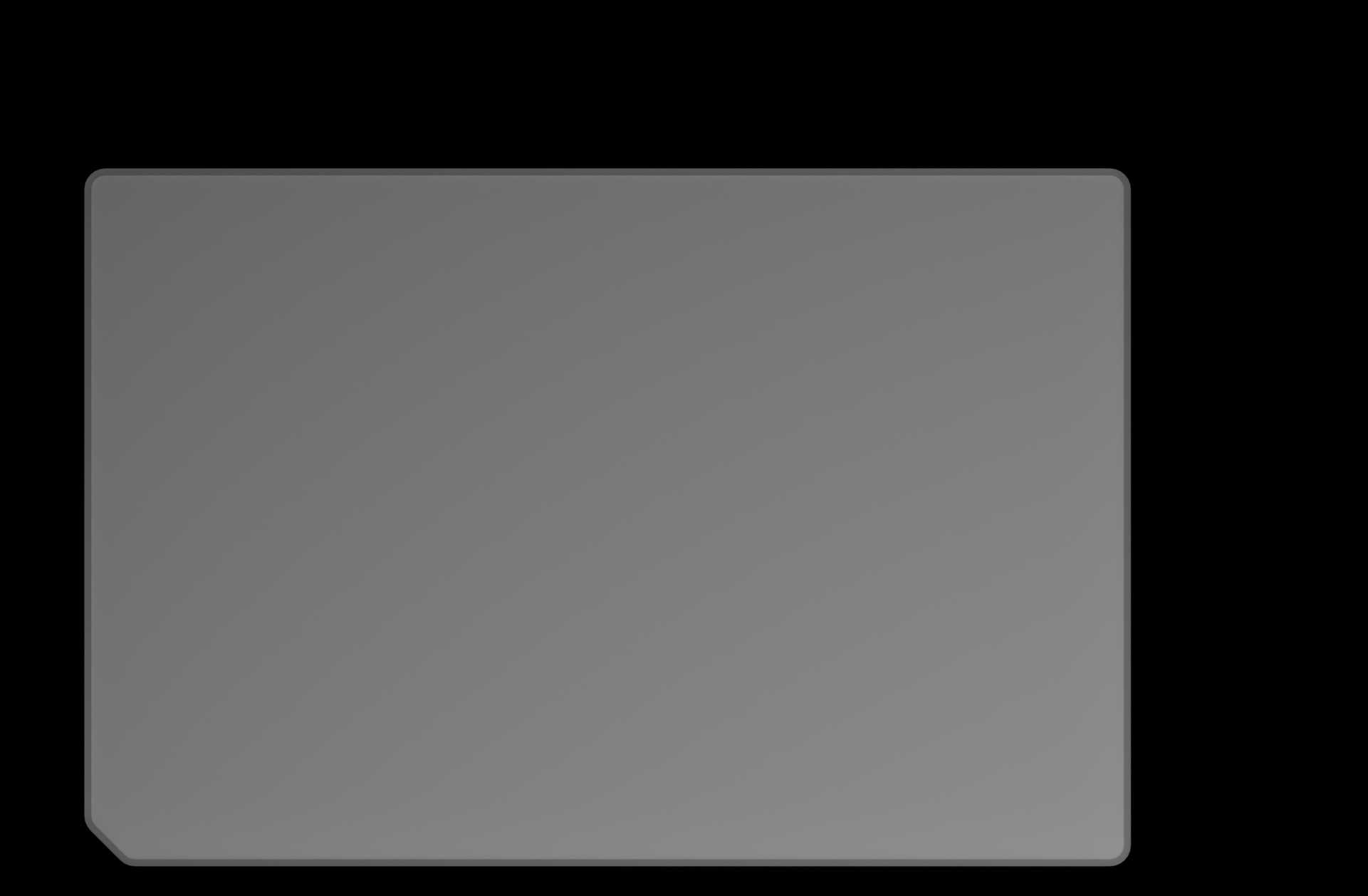

Top view

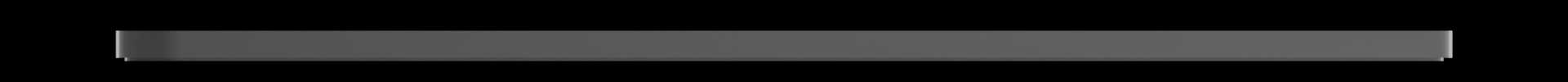

Side view
| Dimension | Value |
|---|---|
| Width | 75.00 mm |
| Depth | 50.00 mm |
| Thickness | 1.50 mm |
The microplate insert is best for:
- Complex designs
- Compatibility with SLAS microplate adapters and spacing

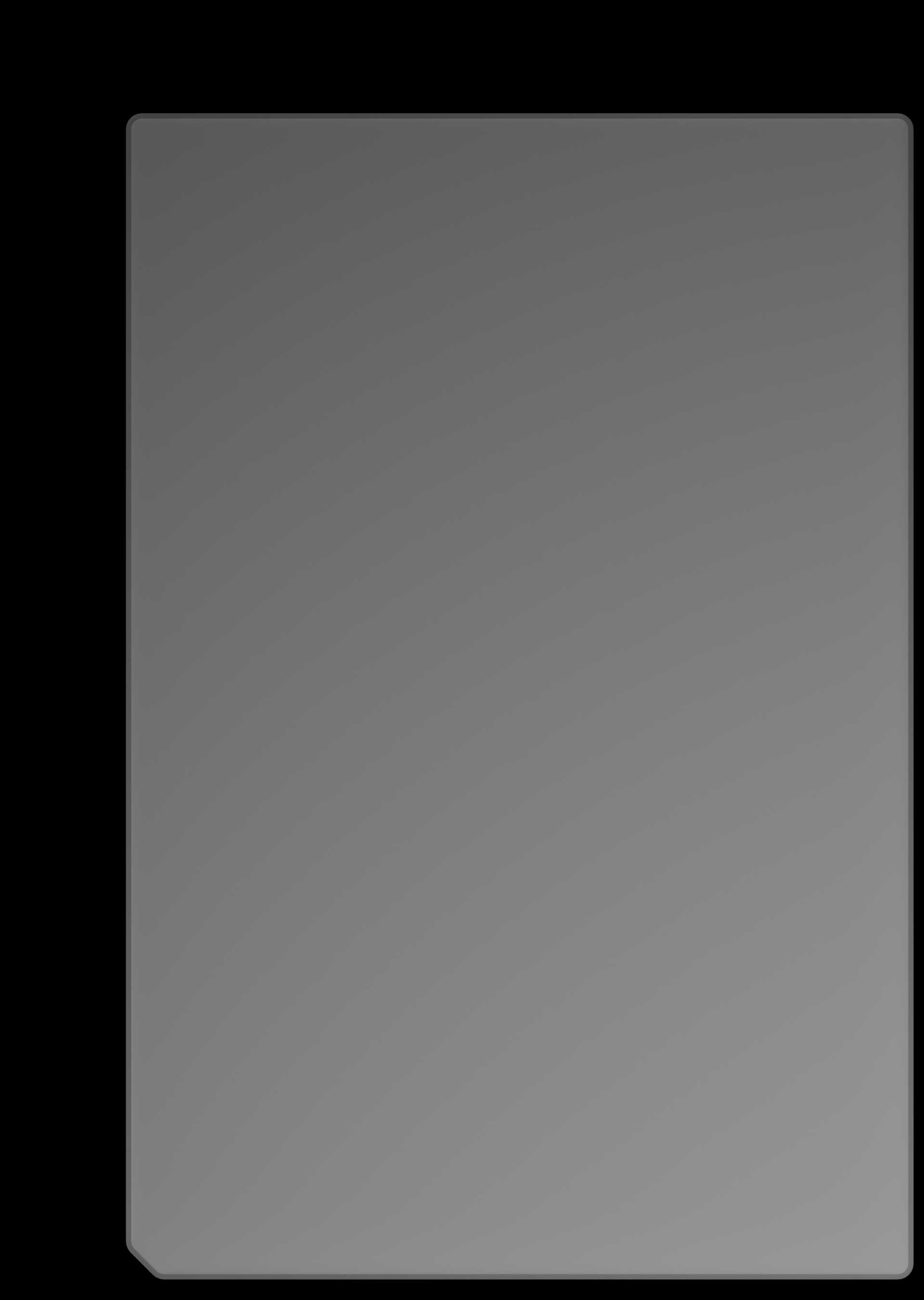

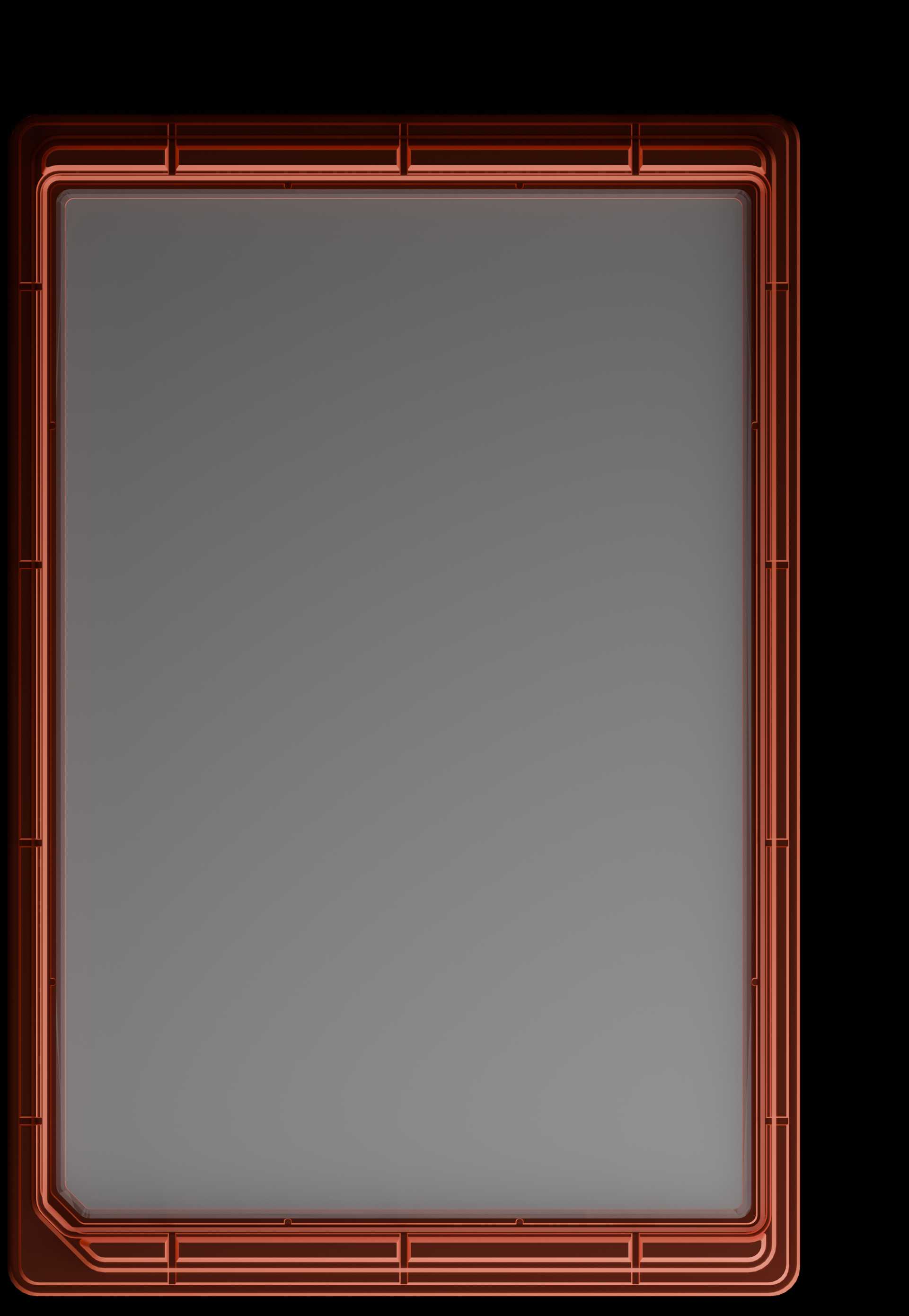

Top view

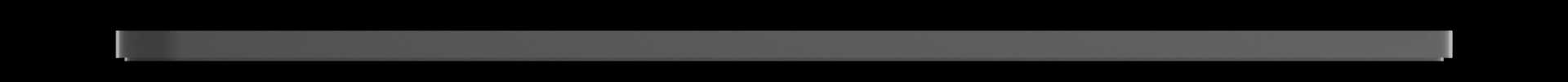

Side view
| Dimension | Value |
|---|---|
| Width | 75.00 mm |
| Depth | 111.00 mm |
| Thickness | 2.00 mm |
