1/4-28 Port

Type: Interface
Compatible materials: PMMA, PC, COP

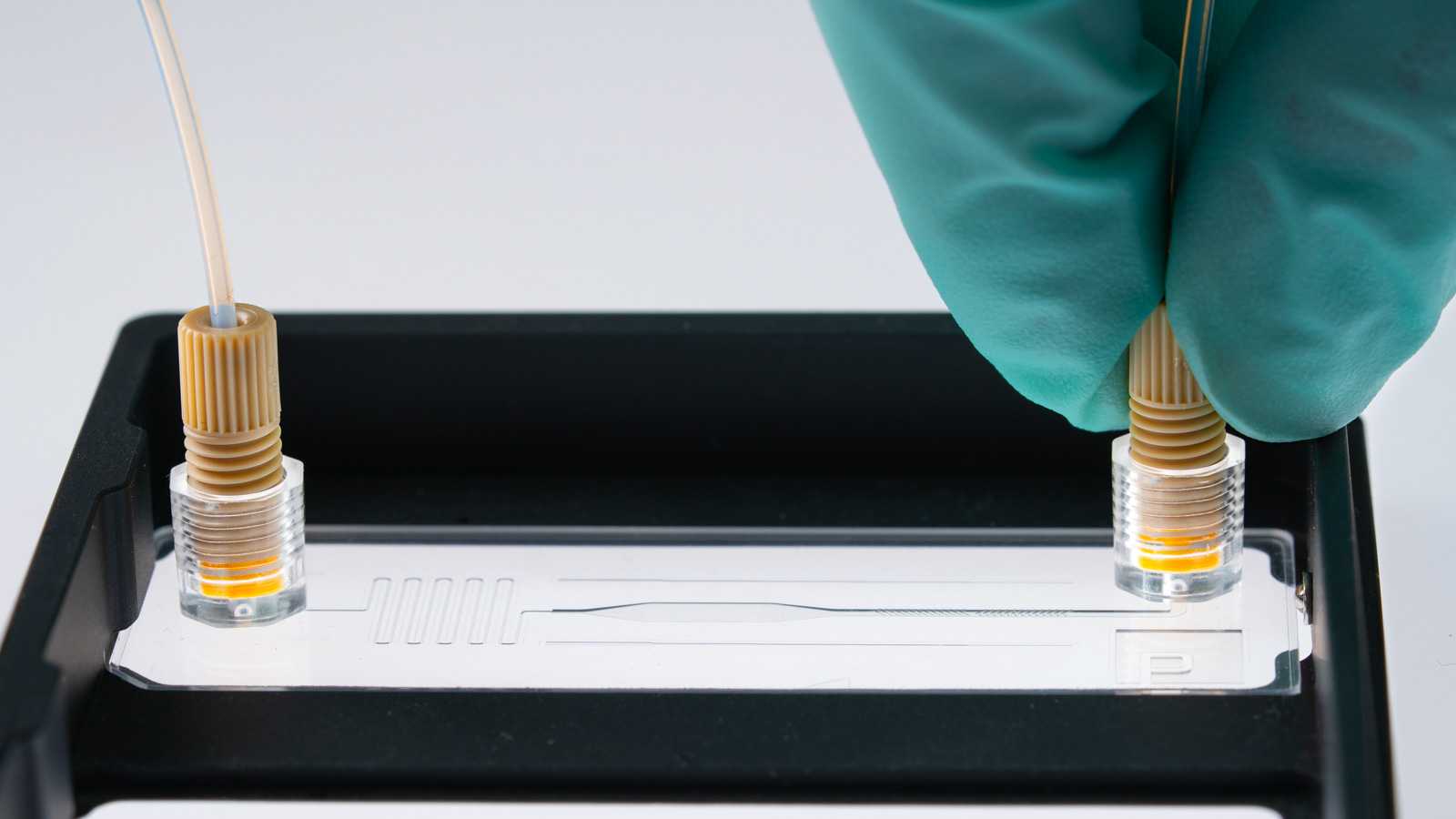

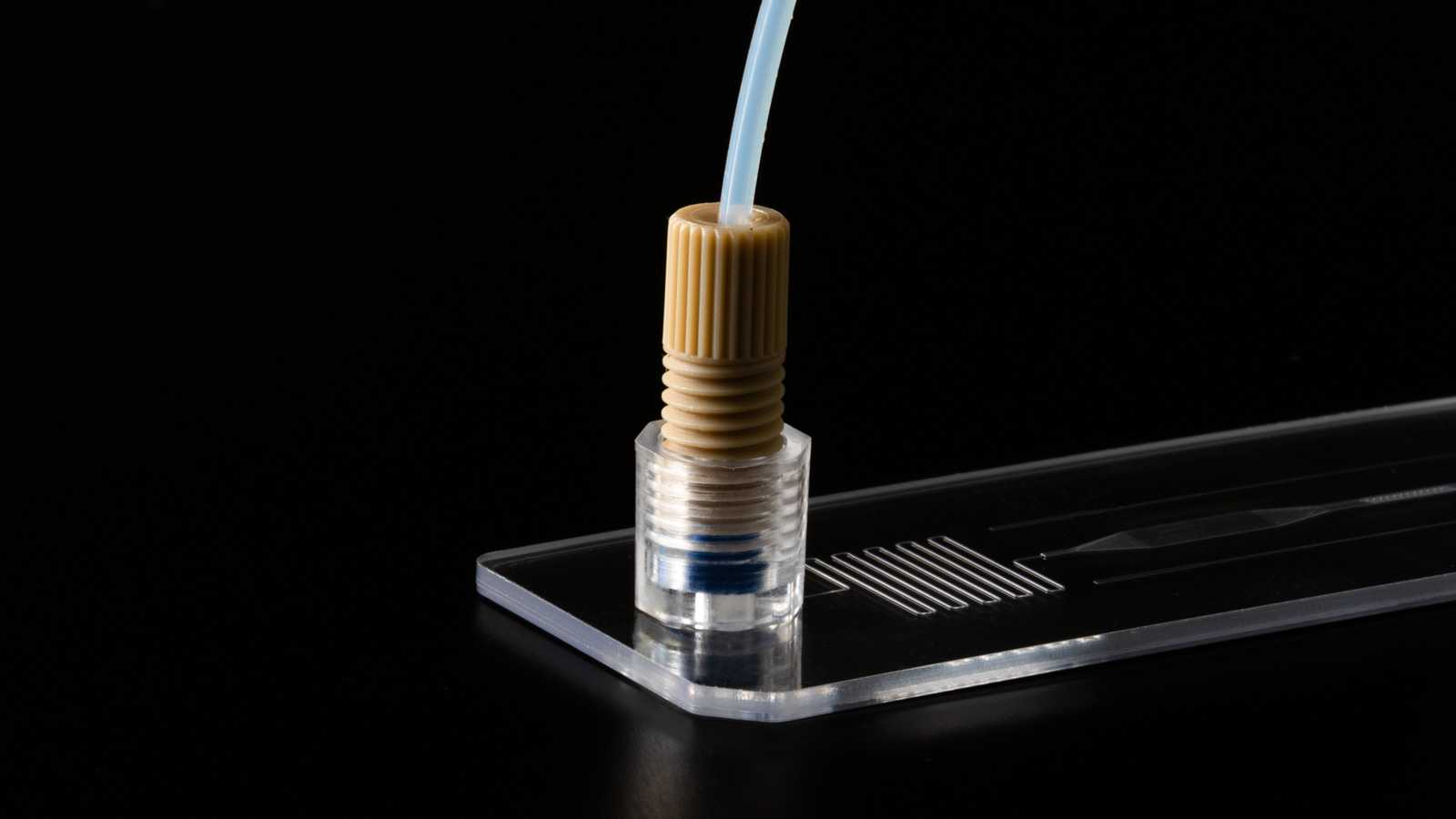

A slide format microfluidic device with a 1/4-28 port connected to tubing using a nut.

Introduction link to Introduction section

A flat-bottom threaded port designed to mate with standard 1/4-28 capillary tube fittings. The 1/4-28 port is a great choice for applications that demand minimal dead volume and high pressure tolerance.

Technical summary link to Technical summary section

Overall dimensions: 8.6 x 8.6 x 8.8 mm
Body material: PMMA, PC, COP
Recommended installation torque: 0.160 N-m (22.5 in-oz)

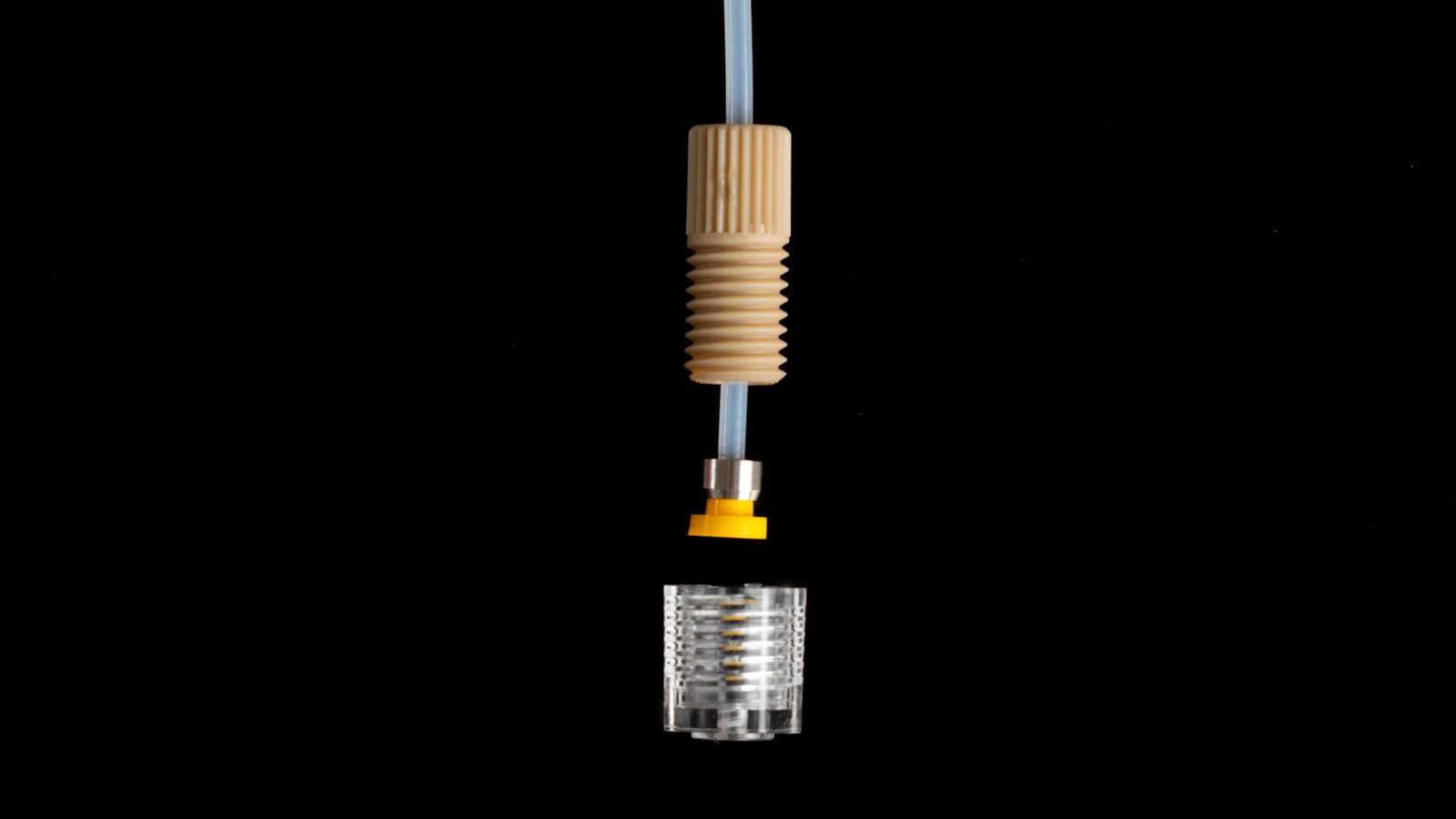

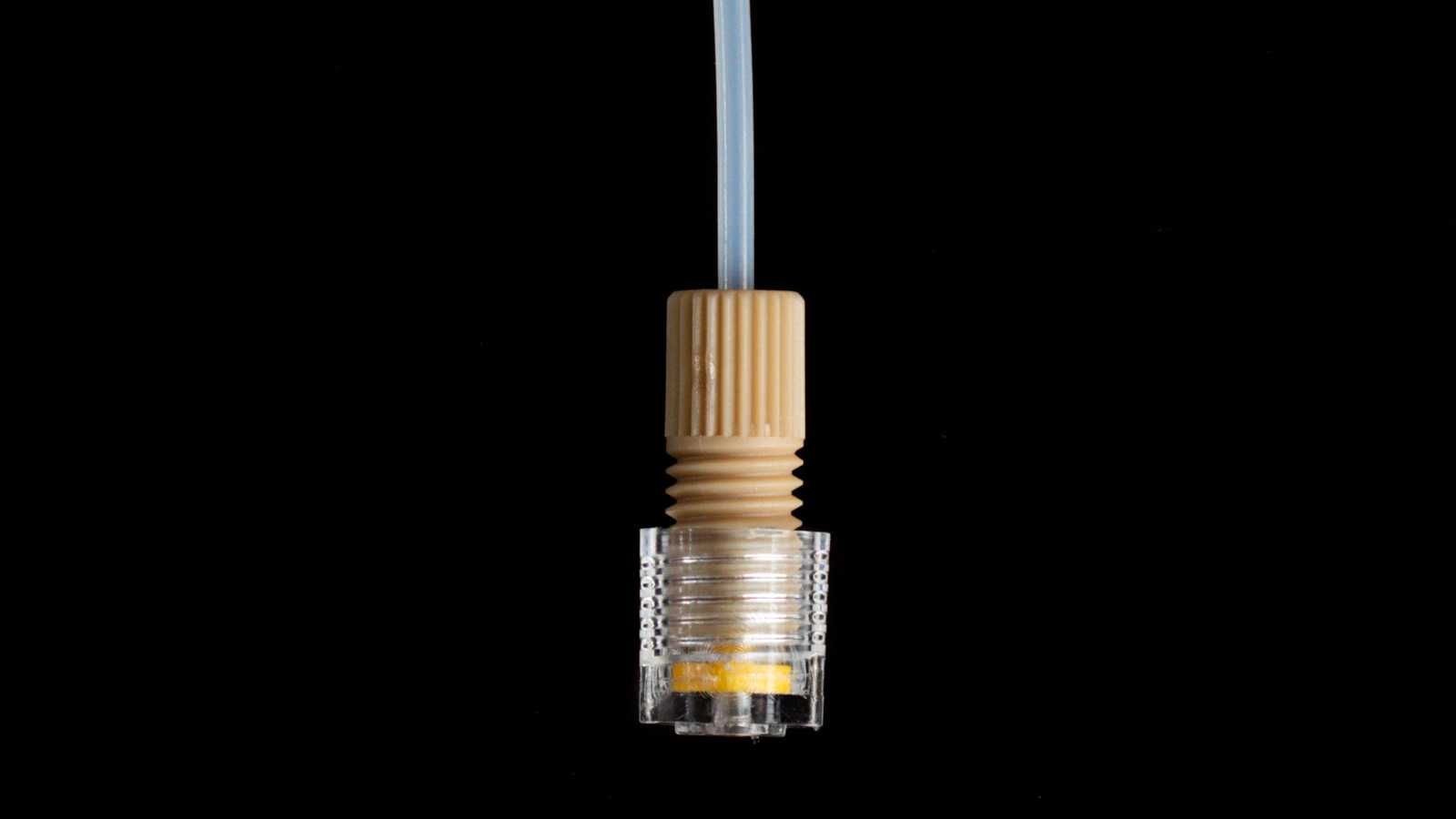

Mating components: Super Flangeless Headless Nut
Super Flangeless Ferrule for 1/16" Tubing
PTFE Tubing - 1/16" OD X 1/32" ID

Resources link to Resources section

Application Guide
