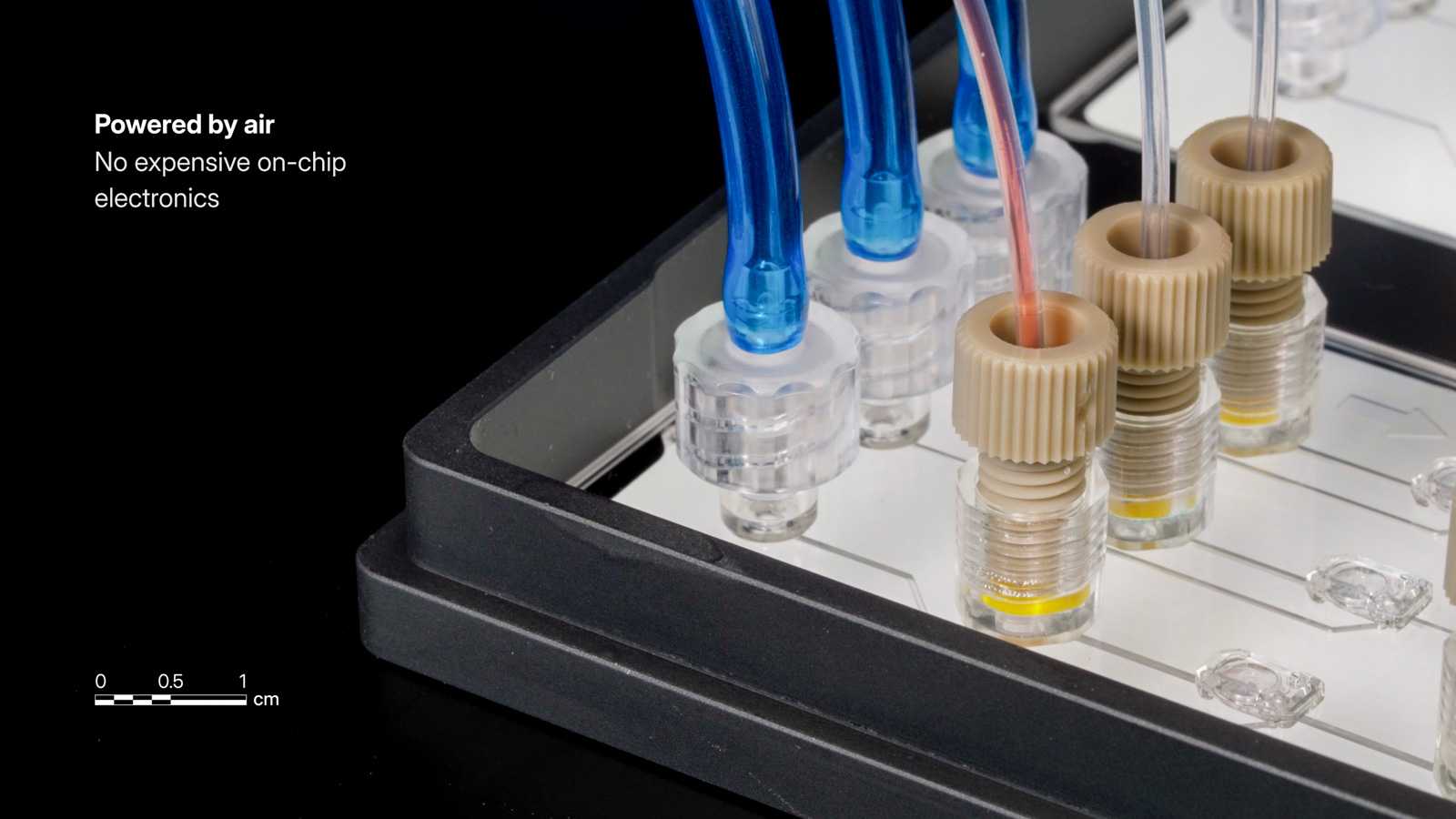

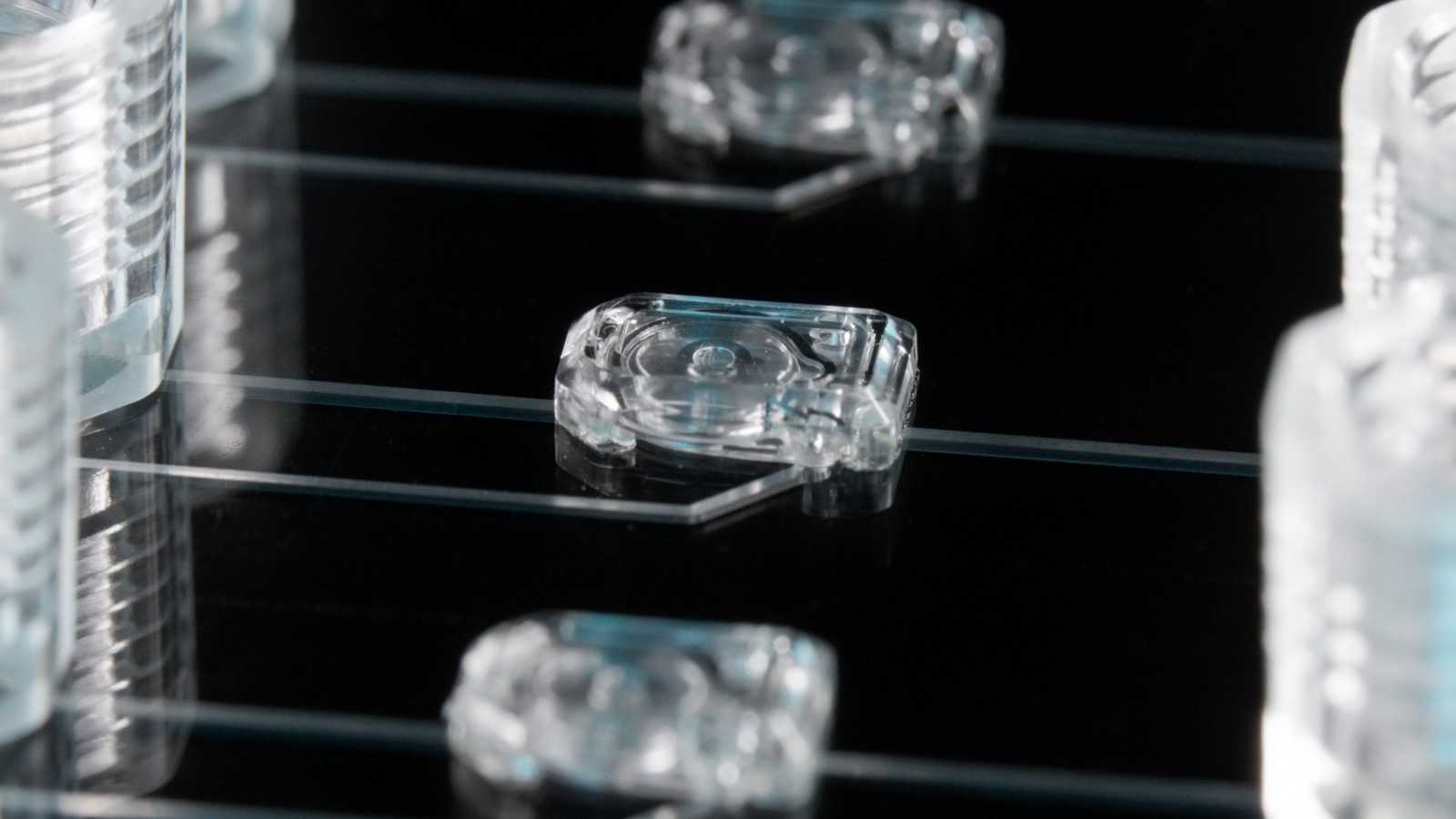

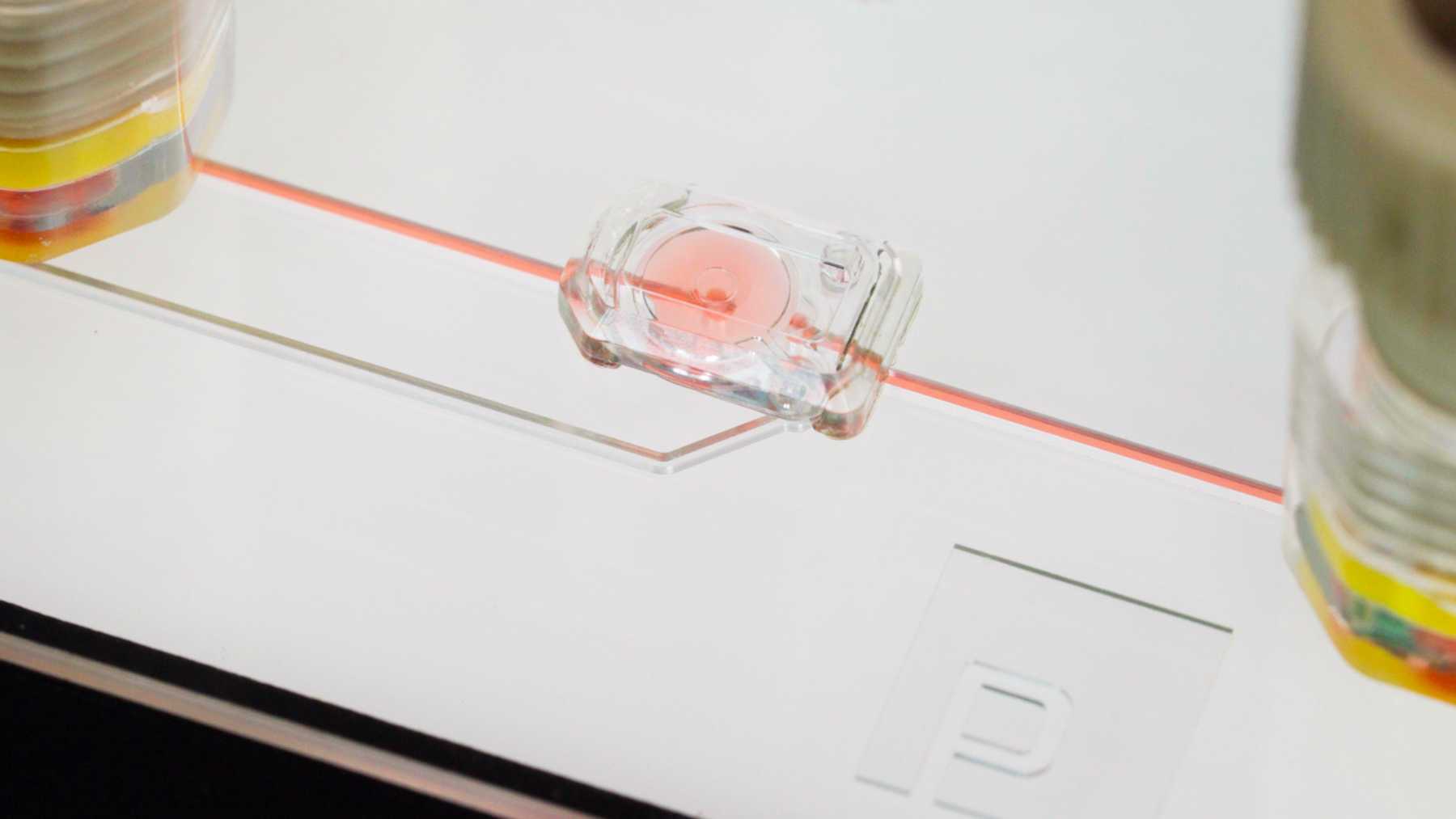

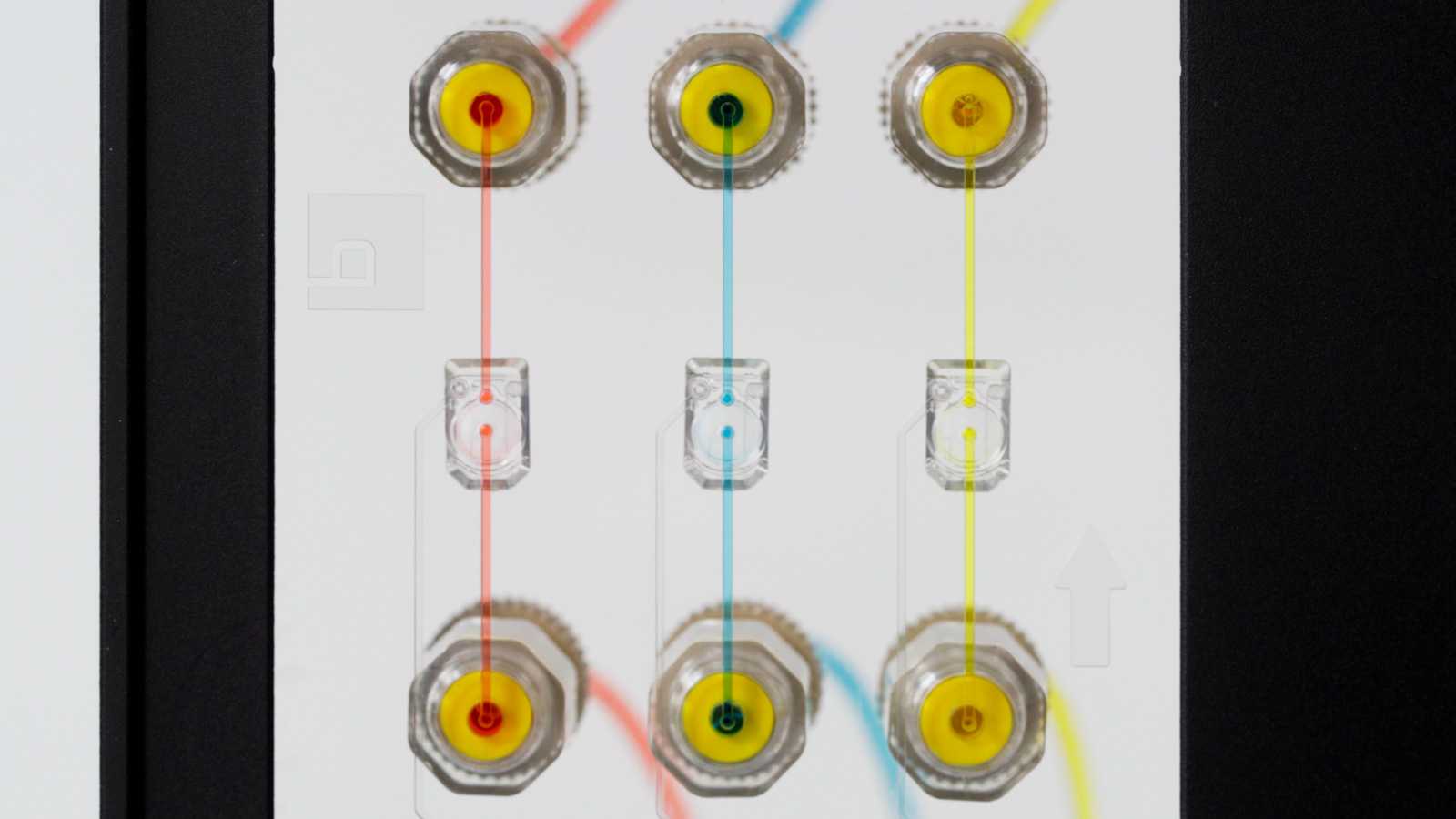

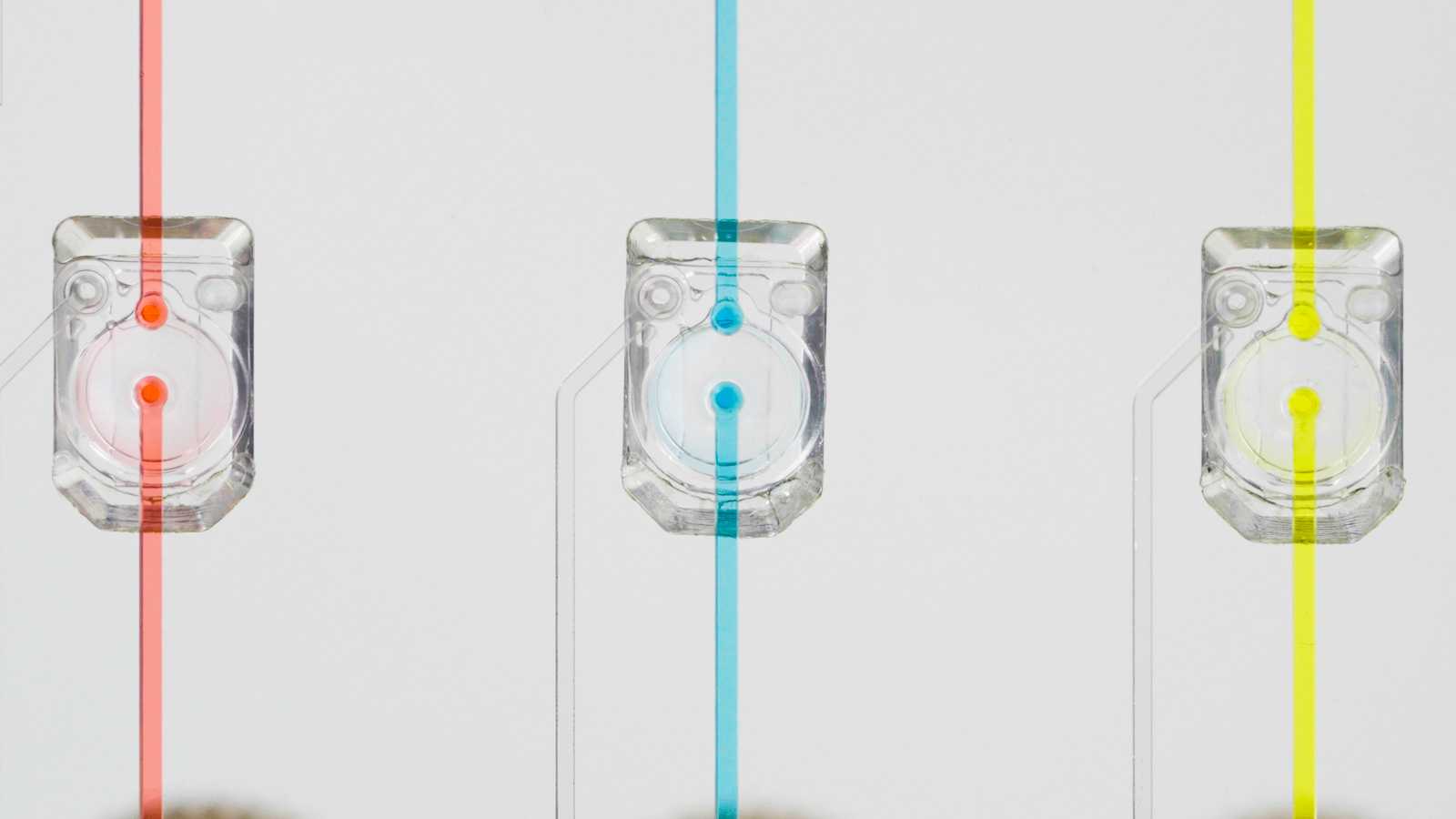

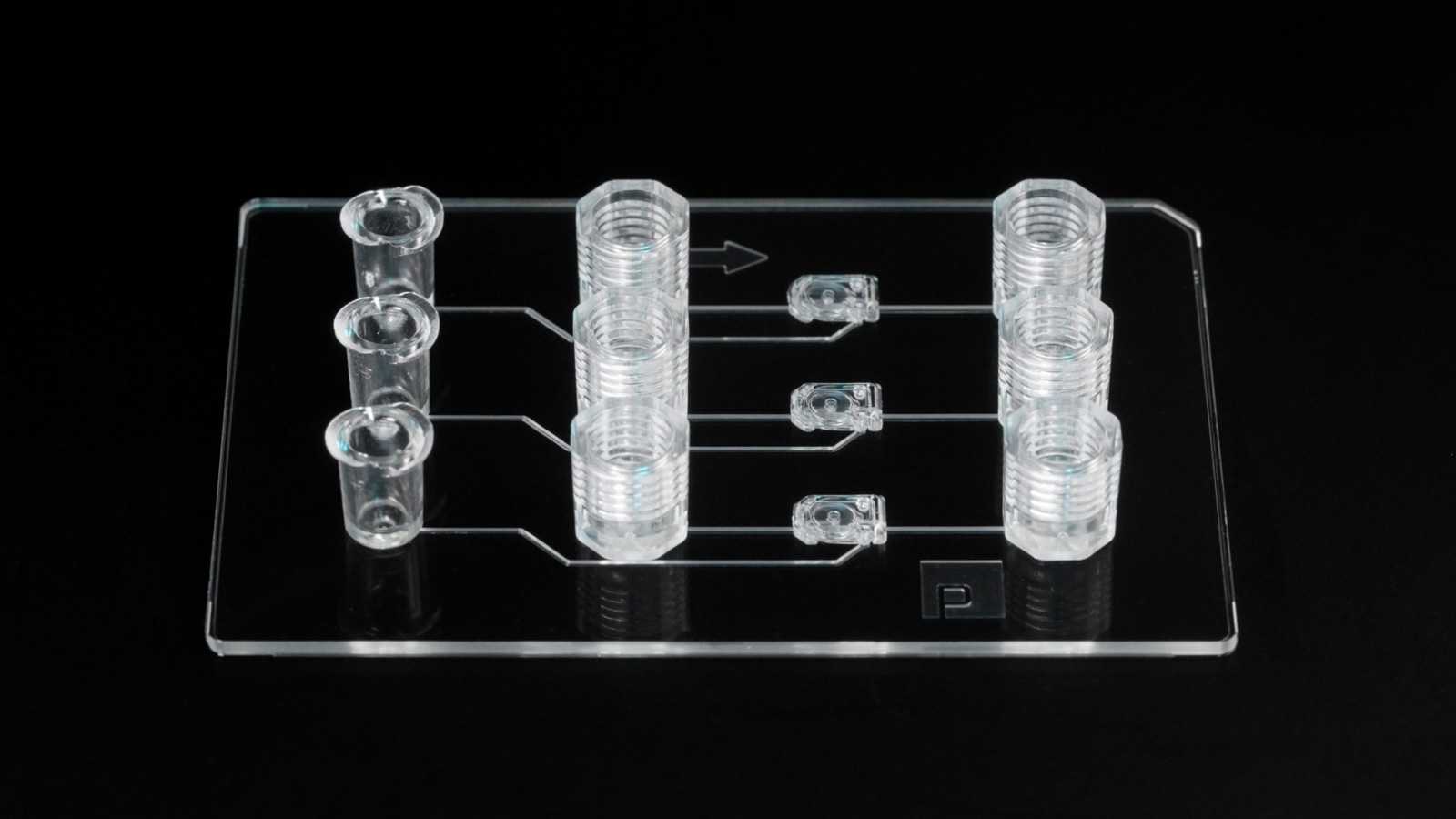

Portable microfluidic systems often don’t have access to the same high-pressure air sources used in lab environments. The MV-2 was designed to seal reliably with only 250 mbar of air pressure, allowing compatibility with quiet, low-power air sources ideal for portable and point-of-care products.

Overall dimensions

4.5 x 7.0 x 1.5 mm

Body material

PMMA, PC, PS, or COP

Actuation method

Externally applied air pressure

Actuation pressure

250 mbar for liquid pressures up to 200 mbar
500 mbar for liquid pressures up to 400 mbar
1000 mbar for liquid pressures up to 600 mbar
