Luer-Lock Port

Type: Interface
Compatible materials: PMMA, PC, COP

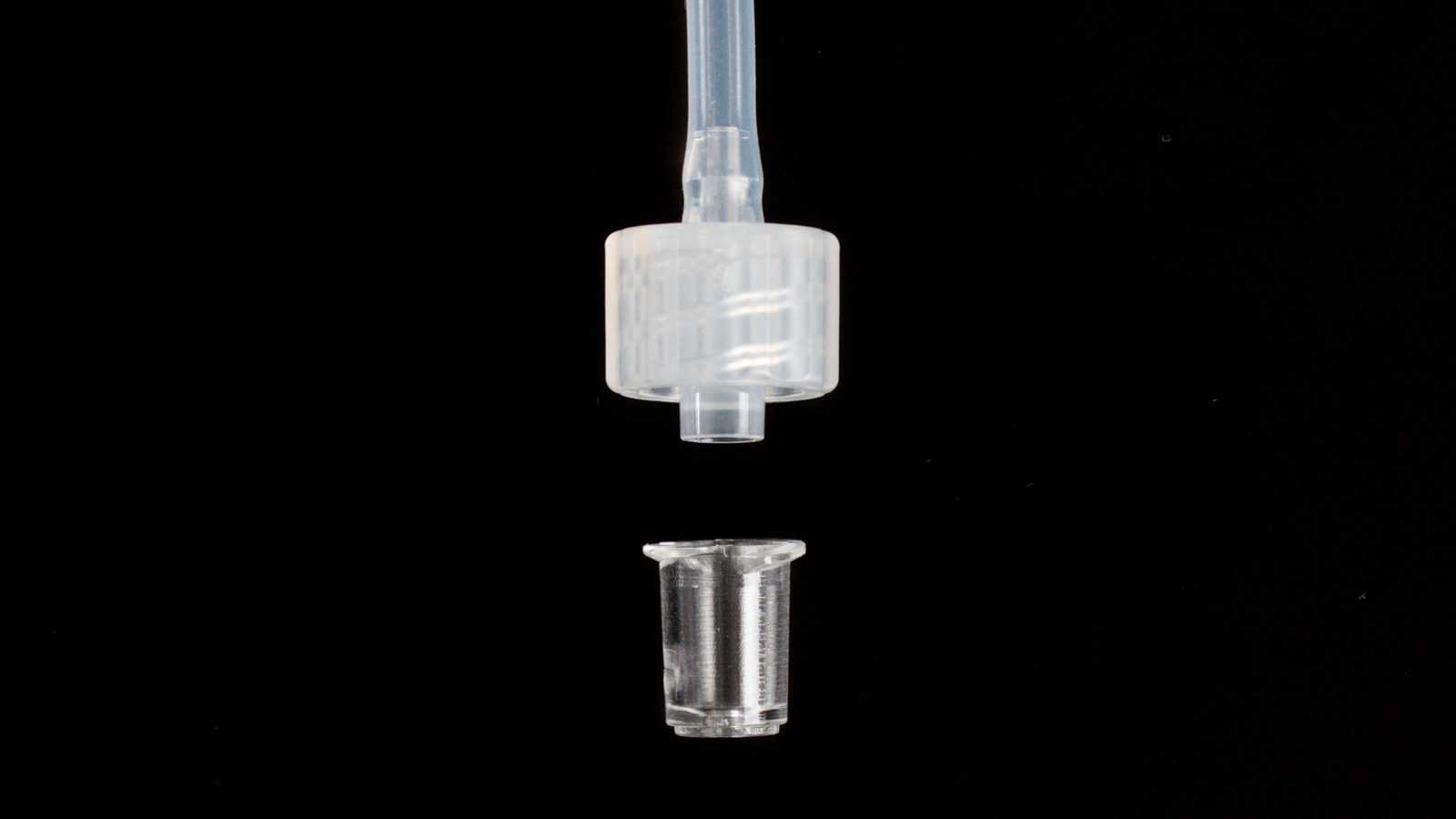

A disassembled Luer-lock interface with the Luer-lock port. From top to bottom: tubing, plug, and the Luer-lock port.

Introduction link to Introduction section

A conical port designed to mate with standard male luer fittings. A great choice applications that require soft tubing or lower pressures.

Technical summary link to Technical summary section

Overall dimensions: 6.9 x 7.8 x 8.8 mm
Body material: PMMA, PC, COP
Mating components: 1/16" ID Barbed to Male Luer Lock Adapter (Polypropylene)
Plug (Polypropylene)

Resources link to Resources section

Application Guide

Want to learn more? Schedule an call.
