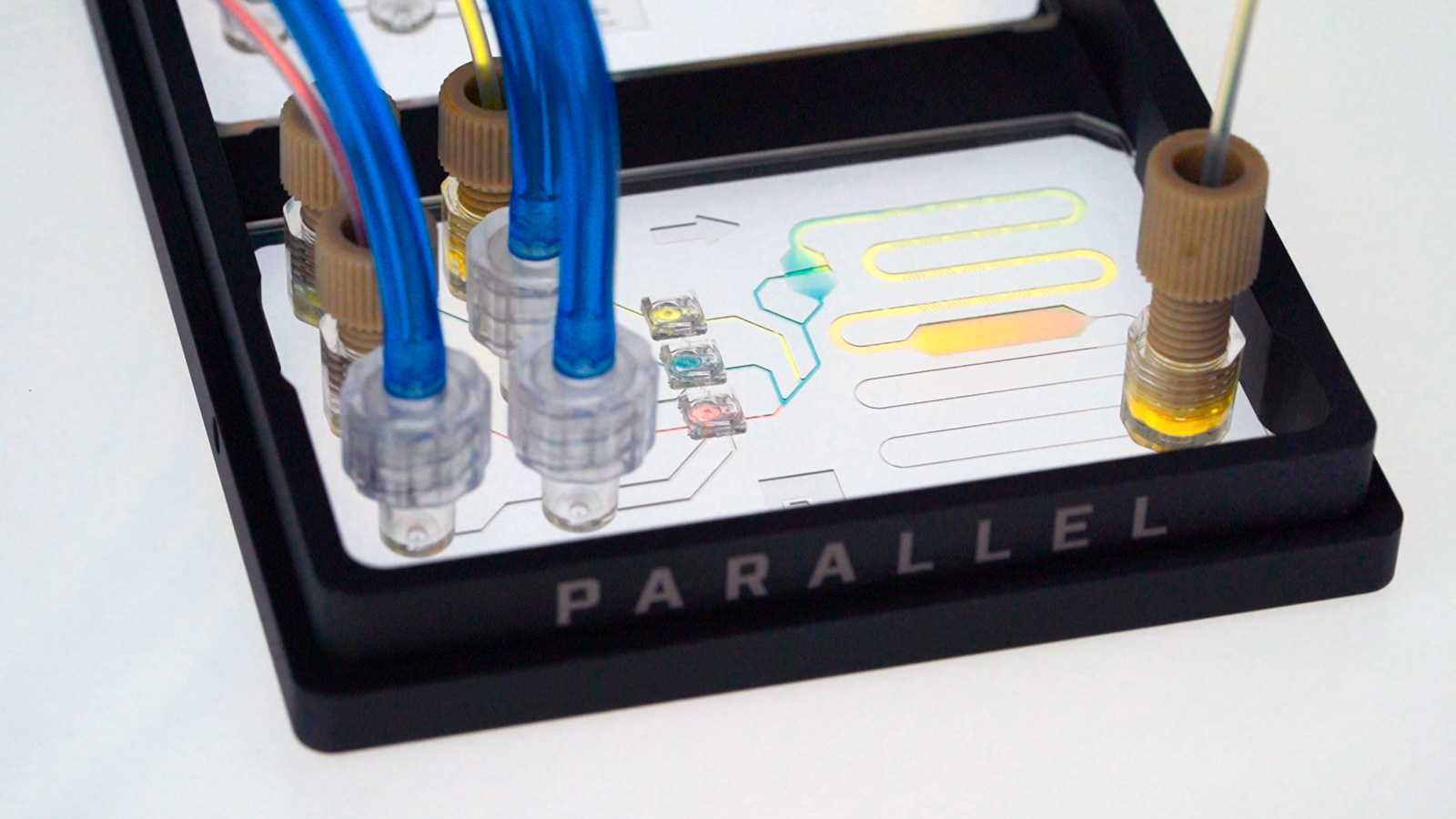

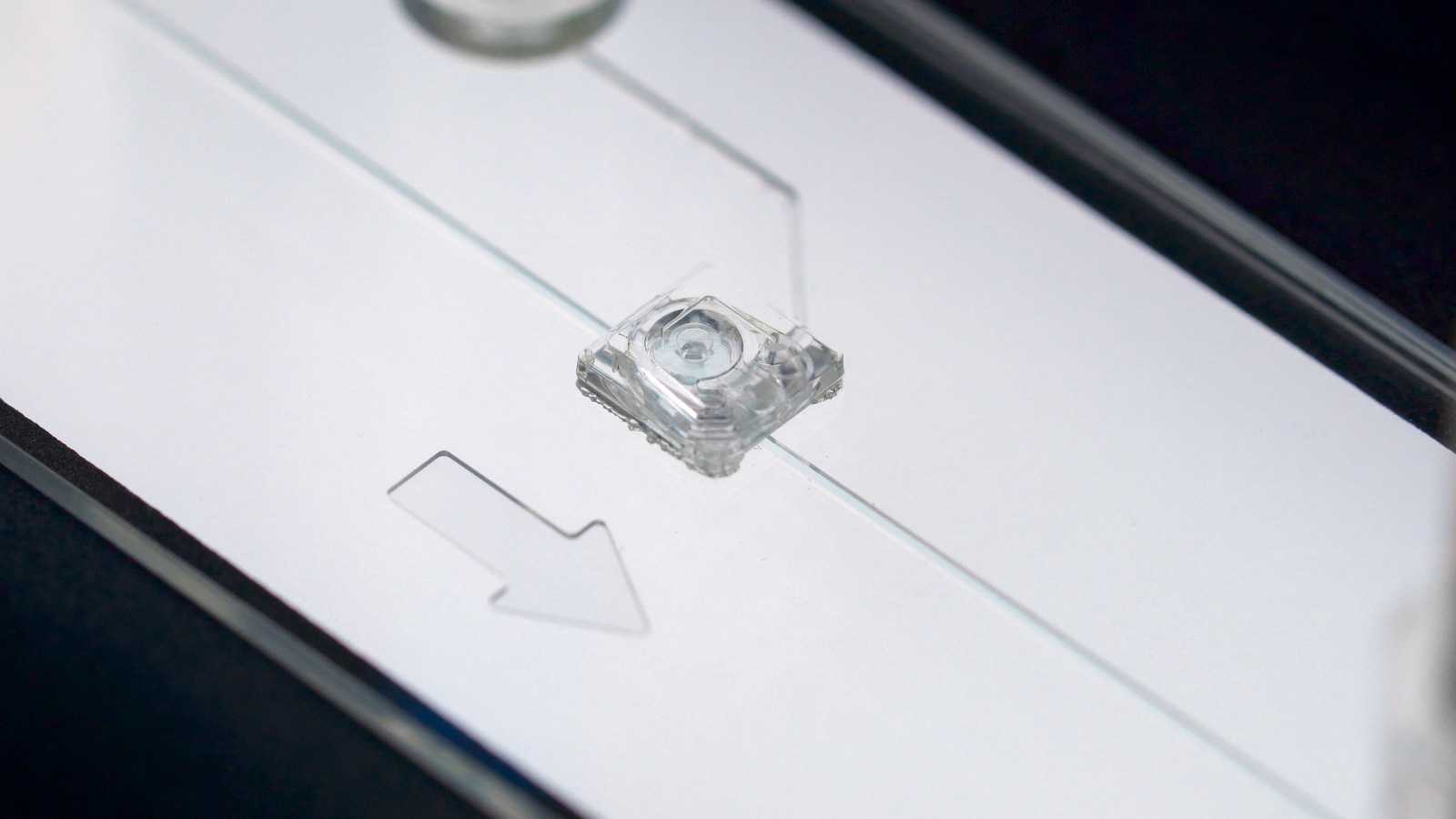

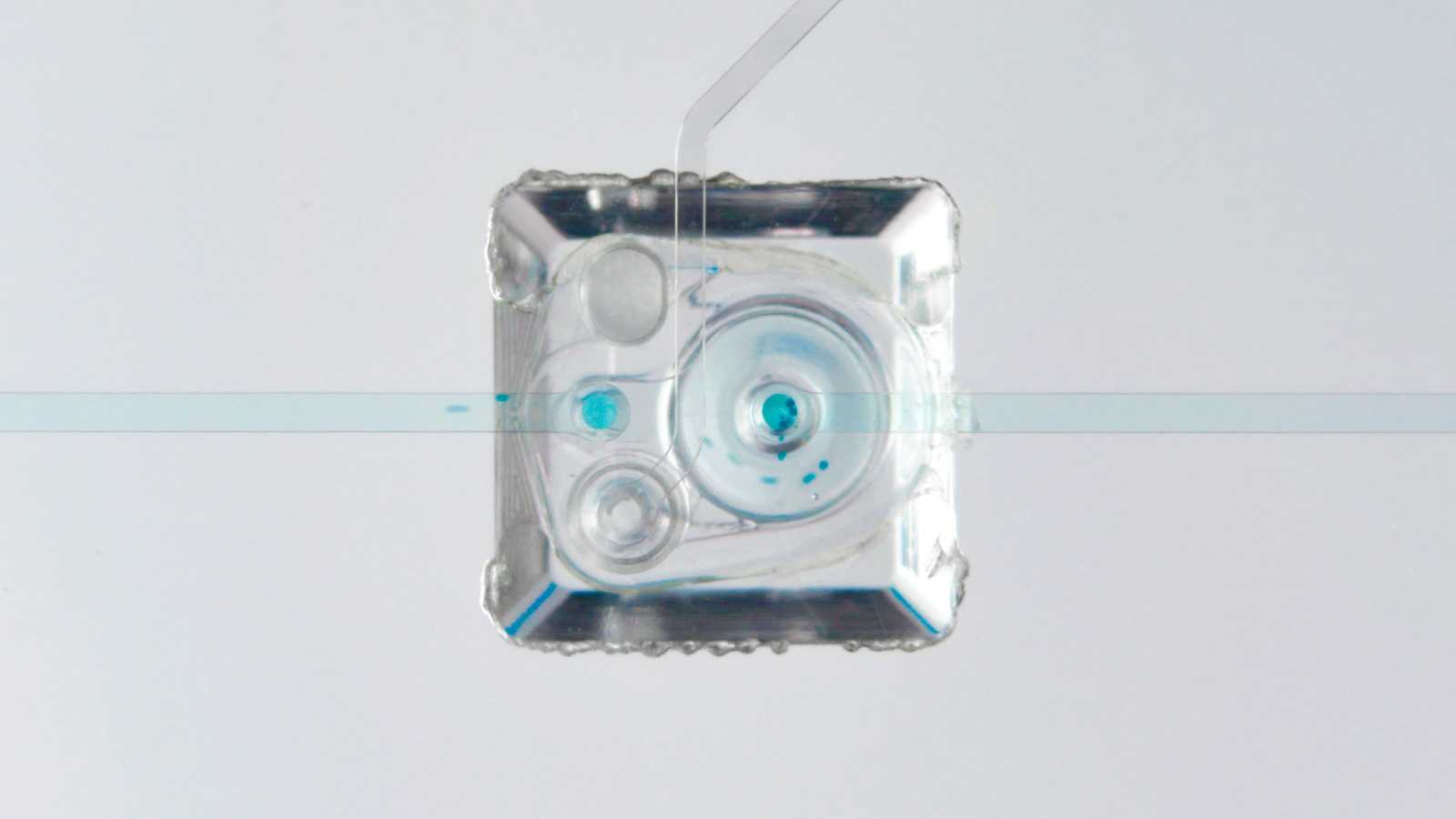

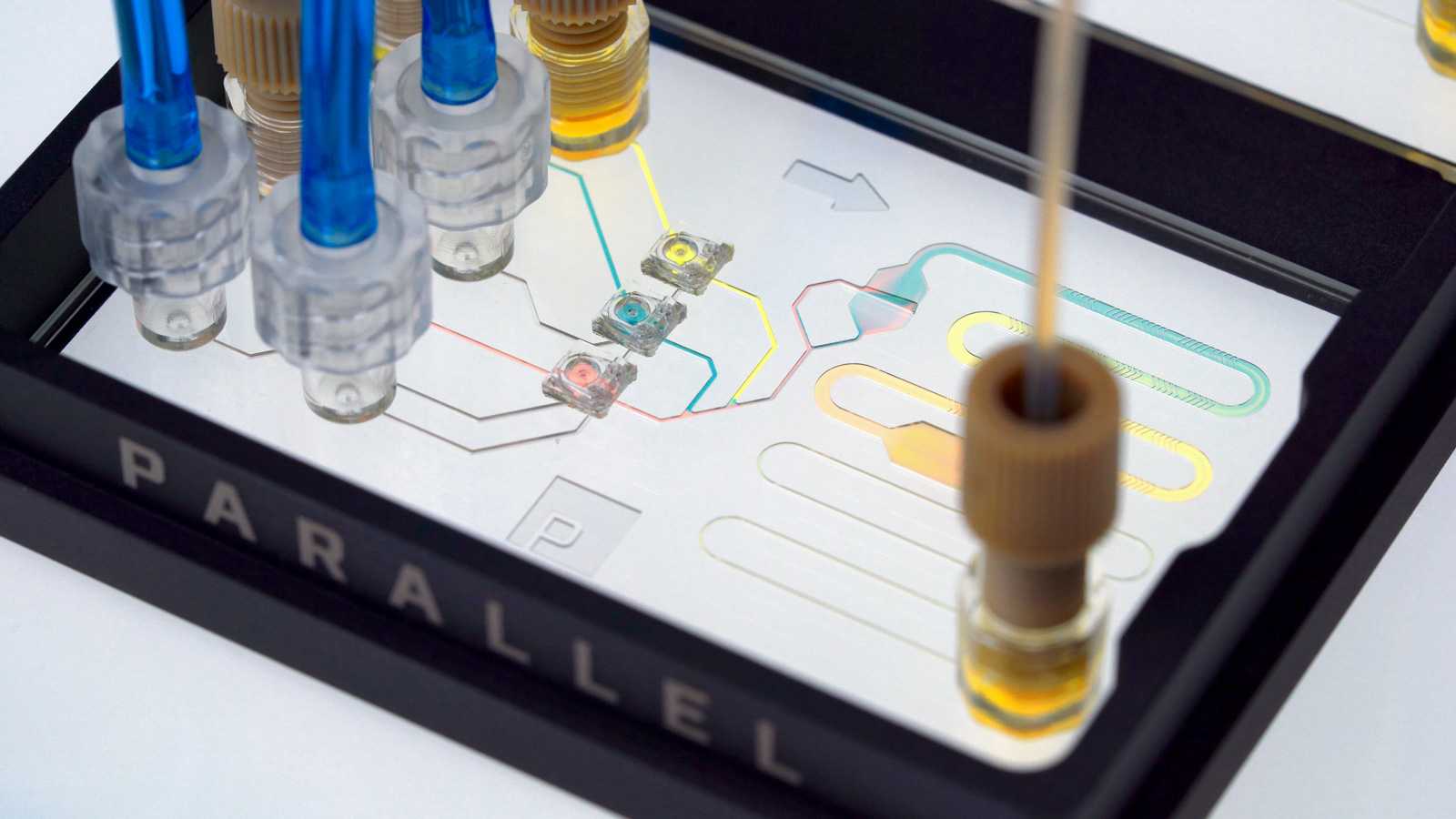

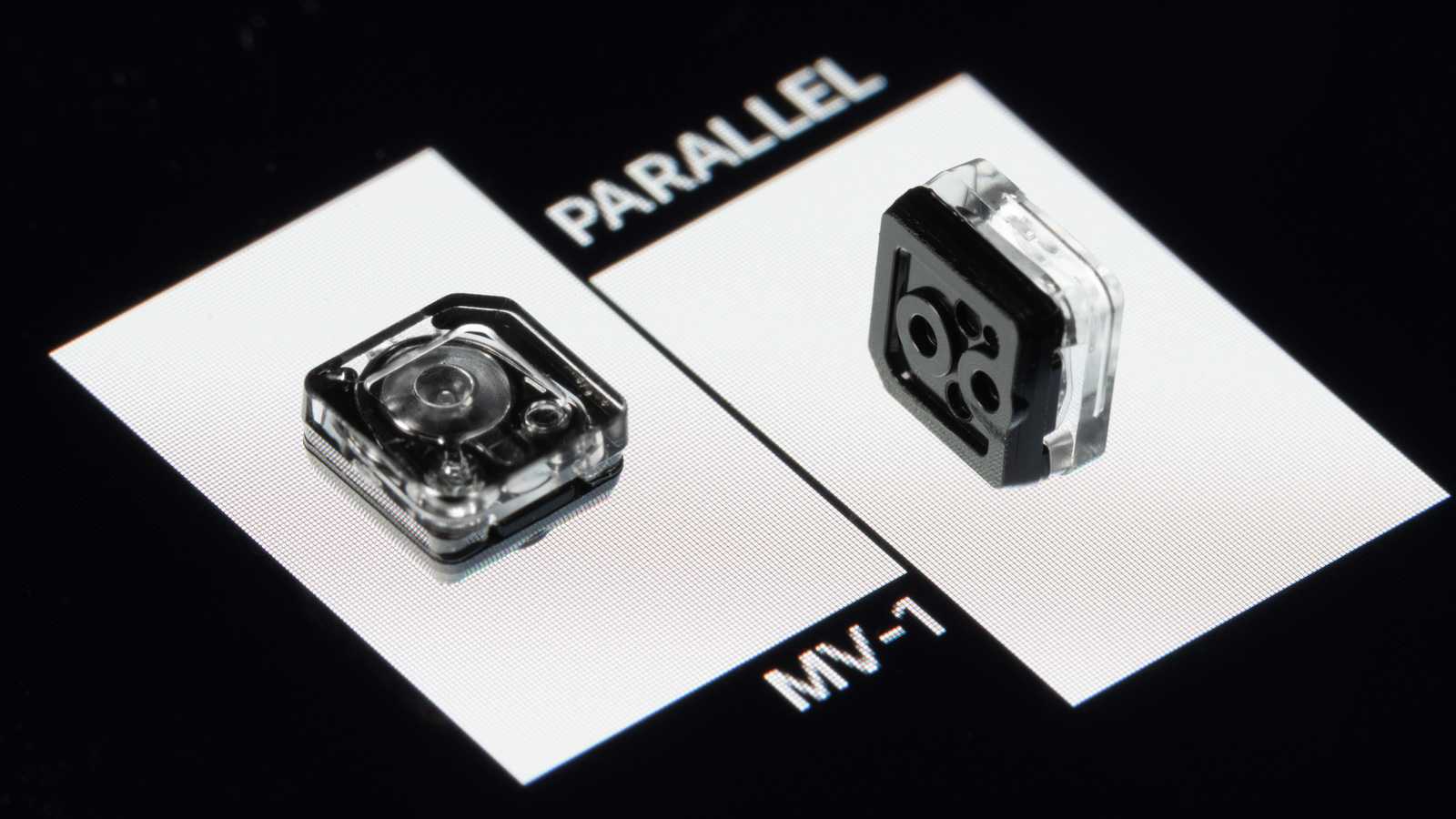

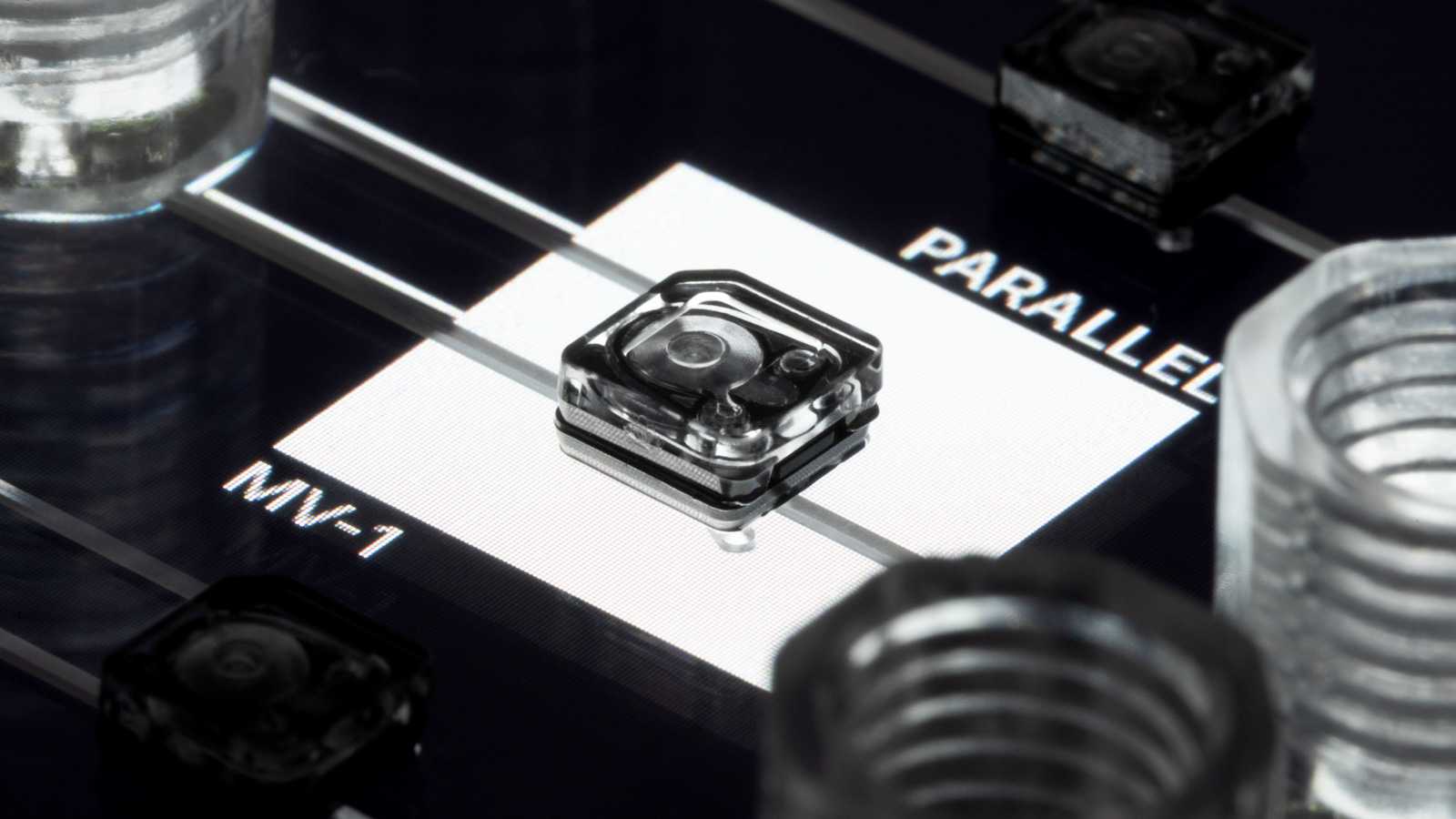

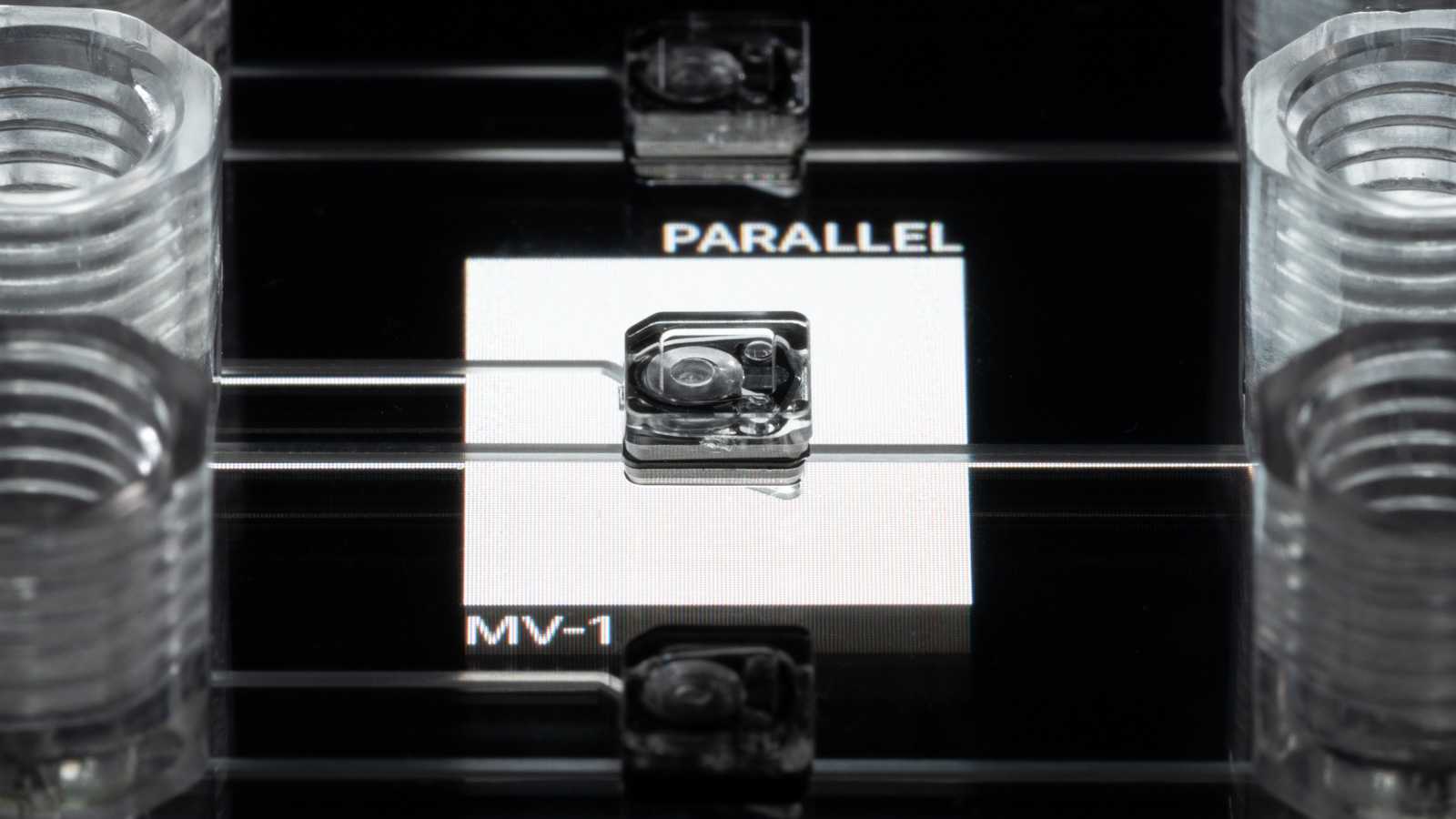

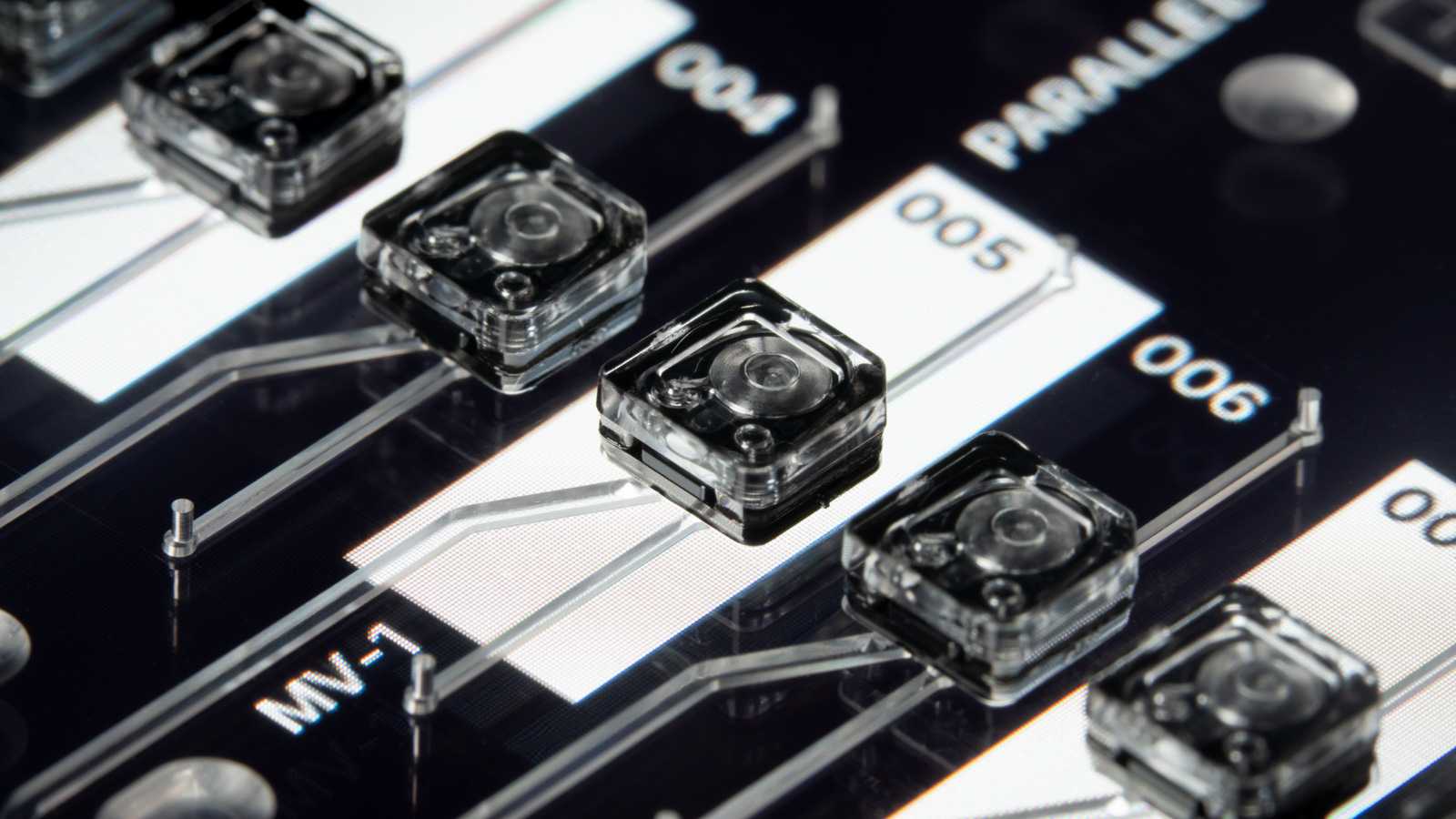

The MV-1 is an embedded on/off valve used to automate microfluidic functions such as priming, mixing, and timing of fluidic events. The valve is actuated using externally supplied air pressure via a channel on the microfluidic chip. Performance benefits of the MV-1 include optical clarity, solvent resistance, fast switching times, reliable sealing, and the ability to traffic small particles without fouling. Multiple valves can be attached to a single microfluidic chip for either simultaneous or independent control.

Overall dimensions

4.5 x 4.5 x 1.5 mm

Body material

PMMA, PC, COP

Actuation method

Externally applied air pressure

Actuation pressure

175 kPa for liquid pressures up to 70 kPa
350 kPa for liquid pressures between 70-200 kPa
